SimpleTube Rolling Chassis 8wd
A complete chassis system that features 8wd and maintenance free "chain-in-tube" construction.

The chassis concept was battle tested by FRC118 in 2013.

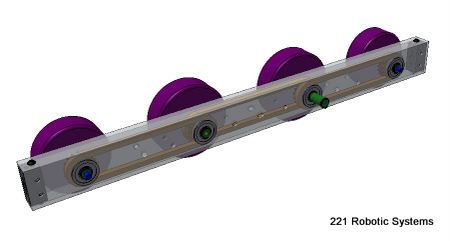

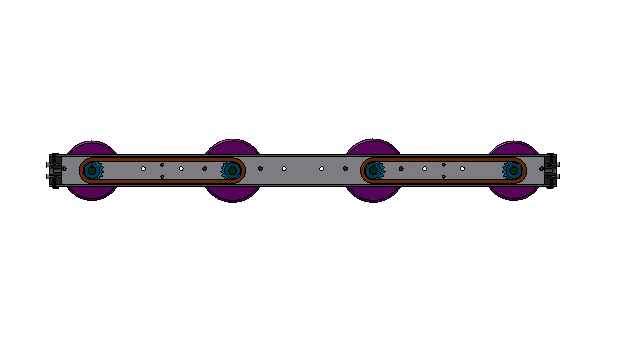

Placing side by side strands of #25 roller chain in the tube protects it from debris, eliminates all chain tensioning hardware and reduces overall system weight.

Simpletube works with our existing line of transmission kits and features 1/2" hex live output shafts.

The rolling chassis kit comes furnished with Colson Wheels. 4" wheels on the center and 3.5" wheels on the outside, custom options available.

We currently stock three lengths of side rail and three lengths of ladder bar. The stock lengths combine to create three different chassis configurations that all measure approximately 111" around the perimeter.

Weight: 14.25 lbs.

Files
8wd_Complete_Chassis_(all sizes).STEP

$900.00
Custom Order Only
