Revolution Pro 2

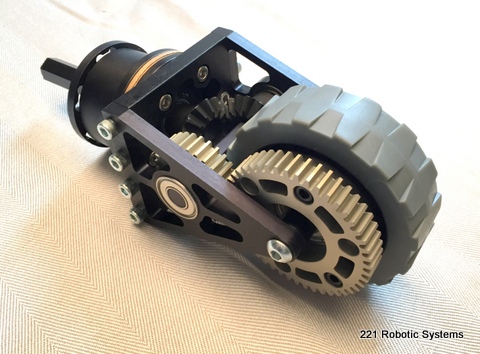

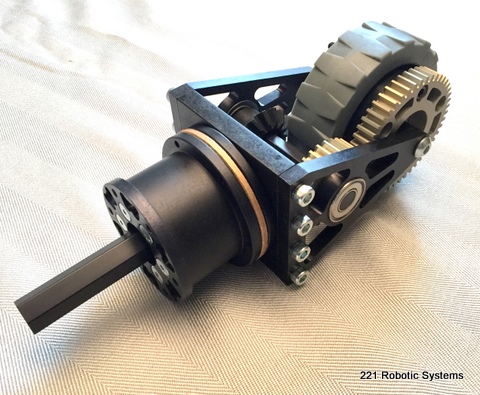

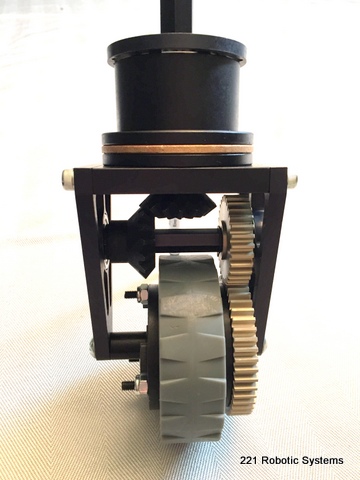

Our Revolution Pro 2 is the ultimate co-axial swerve/crab drive module.

After six years of continuous manufacturing and competition we've re-visited this classic design again and made improvements where you've asked.

The main driveshaft, cross drive shaft and vertical input shaft are 7075 Aluminum. The side plates are compact yet stiff 1/4" aluminum plate and the unit uses an ultra-compact 3.25" VEXpro drive wheel.

The vertical propulsion input shaft is now 1/2" hex...this eliminates the need for a keyed sprocket and makes interfacing that much simpler.

Lightweight aluminum spur gears from VEXpro are used to achieve the final drive ratio.

The upper steering components and architecture have been shortened from our previous versions. This module is fully compatible with our line of Revolution accessories.

The module is shipped with a 1.6:1 final drive ratio. A 2.25:1 ratio can be achieved with a set of change gears.





Weight: 1.9 lbs.

Files
Revolution_Pro_2.step
Revolution_Pro_2.PDF

$400.00
Custom Order Only
