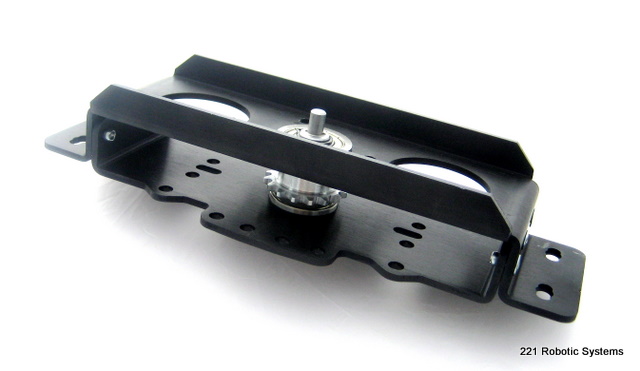

Wild Swerve Steering Module
Use this module with a Wild Swerve transmission to add expert steering control to your project.

Built around premium Andymark, Inc. components, this steering module is the perfect compliment to your Wild Swerve transmission set.

A 1/2" steel hex input drives an Andymark aluminum 16 tooth #25 sprocket.

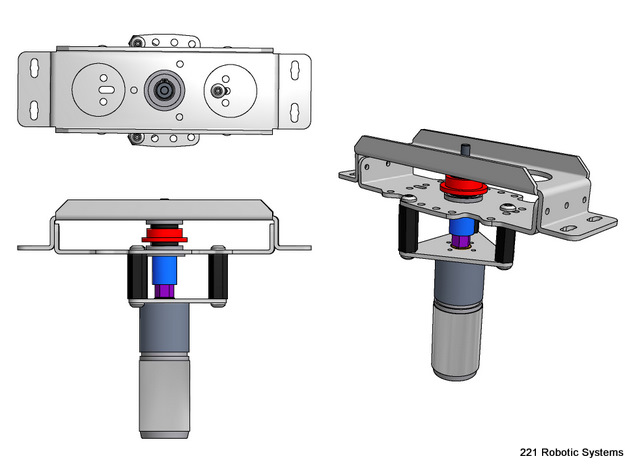

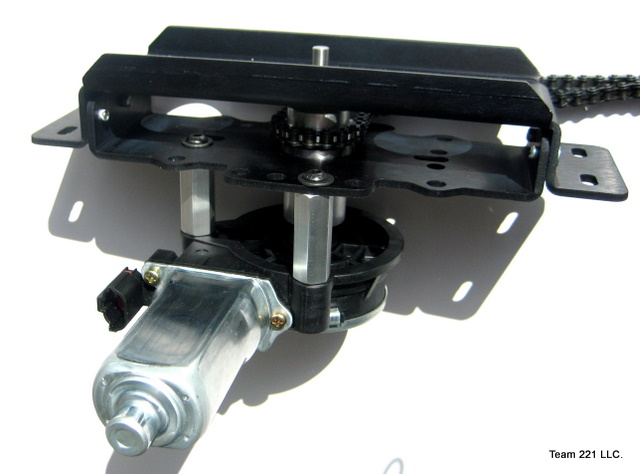

The motor mount plate supports both FIRST kit window motors from the past few seasons and the kit globe motor when using the optional adapter plate. Motor interface to the input shaft is not provided.

The included motor mount plate is also compatible with the 210
series of window lift motors available from AM Equipment.

A WS Feedback Mounting Kit can be added to this steering module to allow for easy sensor integration.

Material: 5052 Aluminum, Black Anodize.

This kit includes:
1 - ws_pivot_bracket
1- ws_steering_plate
1 - hex input shaft
1 - .500" hex ID ball bearing
1 - .500" ID ball bearing
1 - .5" snap ring
6 - 5/32" steel pop rivets
2 - sprocket spacers
1 - AM 16 tooth #25 sprocket, aluminum

NOTE: Motor and standoffs not included. Interface to hex must be designed and fabricated by customer.

Weight: .8 lbs.

Files
Wild Swerve Steering Assembly.pdf
Wild Swerve Steering Module.step

$75.00
Custom Order Only

Accessories

WS Feedback Mounting Kit Use this kit to add feedback to your Wild Swerve Module or Steering Kit. $10.50 Custom Order Only
