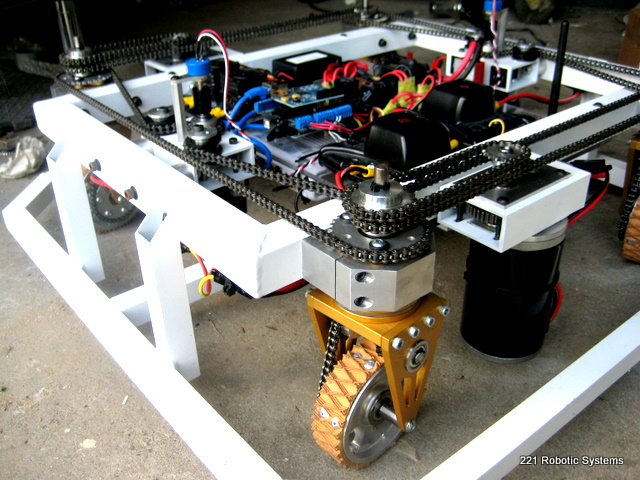

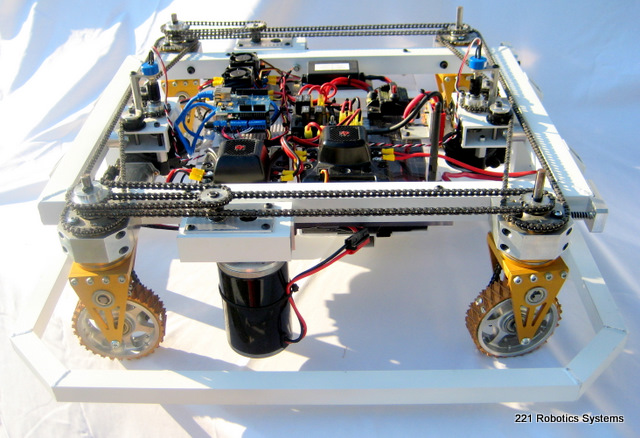

Revolution Mobile Platform
This robot is an internal demonstration unit. The base features Revolution swerve modules and a complete power distribution and controls system.

Frame Specs:
-Welded aluminum tube, 1.25"x1.25"x.125"w
-Custom clamp mounts for Revolution modules

Bumper Perimeter:
-Welded aluminum tube, 1"x1"x.062"w
-Custom battery tray

Drivetrain:
-4x Revolution Swerve/Crab module
-2x custom drive transmission with adjustable chain tensioners

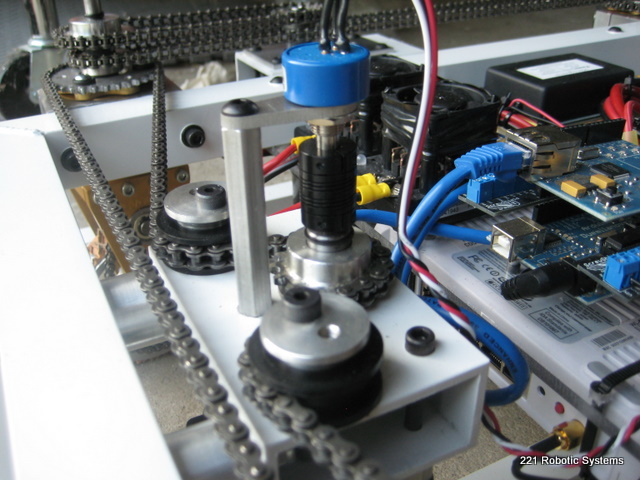

-2x Custom steering input system with cam based chain tensioners

Power Electronics/Controls:
-12v sealed lead acid battery
-Anderson quick disconnect power poles
-60amp high draw circuit breaker/power switch
-power distribution block with auto reset fuses
-12v to 5v dc-dc converter
-Asus wireless router
-2x Jaguar motor controller
-2x Victor motor controller
-Arduino board with ethernet shield

Similar units can be manufactured on request and are quoted on an individual basis.

Estimated cost for a basic unit is approximately $5000.00

Contact us for more info.

Weight: 65 lbs.


Custom Order Only
