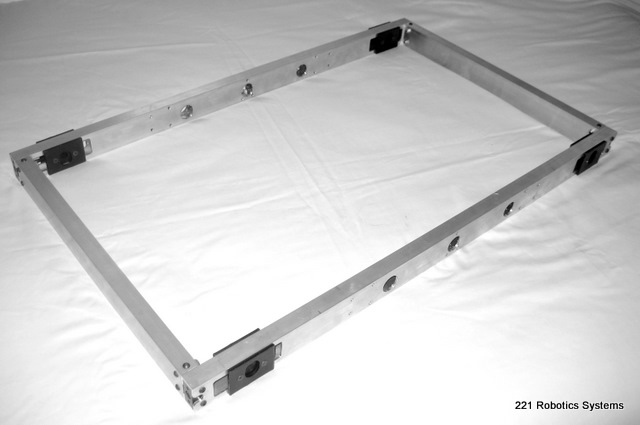

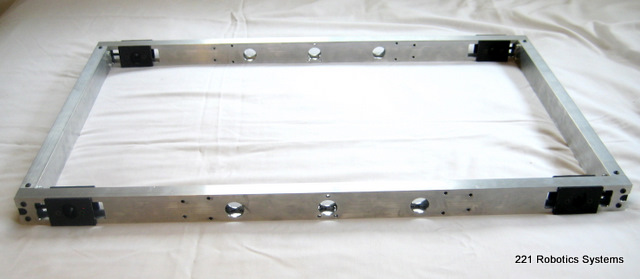

Super Light Chassis Kit
Please call for information on how to get the items shown in this kit.

The Super Light Chassis system uses the same expert chain tensioning strategy and quality construction as our original Universal Chassis.

A new tube layout allows the use of 3,or 4 wheels per side.

Ladder bars can be attached flush with the chassis tube end or recessed from either side.

Each side rail is designed to carry 1/2" ID flanged ball bearings. Any bearing with a 1.125" OD can be used.

This kit includes the following:
1 - Super Light Side Rail Kit (37" or 27")
1 - Super Light Ladder Bar Kit (20.5" or 30.5")

Weight: 9.8 lbs.

Files
Super Light Chassis.step
Super Light Chassis, Ladder Bars Recessed.step
Super Light Chassis Assembly Drawing.pdf

$515.00
Custom Order Only
