Ladder Bar Kit
Add these ladder bars to your SuperLight or SimpleTube chassis to make a complete frame.

Choose the appropriate length ladder bars to create various sizes and shapes of chassis\'.

Ladder bars are constructed from 1\"x2\"x.125\" wall 6061-T6 aluminum tube and use our Chassis Tube Connector block to provide a rigid and simple way to connect frame tubes.

SimpleTube Configurations:
26.4375\" - Combine with 24\" SimpleTube rails to create a 111\" perimeter
22.4375\" - Combine with 28\" SimpleTube rails to create a 111\" perimeter
18.4375\" - Combine with 32\" SimpleTube rails to create a 111\" perimeter

SuperLight Configurations:
30.5\" - Use with the 27\" SuperLight rail to create a wide bot
20.5\" - Use with the 37\" SuperLight rail to create a narrow bot

Custom Configurations:
XX.X\" - Contact us and we\'ll make you a custom length

Kit comes with 2 ladder bars.

Weight: 2.4 lbs.


$99.00
Custom Order Only

Accessories

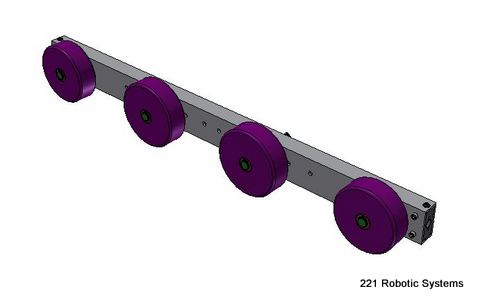

Super Light Side Rail Kit Use this side rail kit to build a mobile platform using our Super Light Chassis system. $375.00 Custom Order Only	ST Side Rail Kit, 8wd Use this set of side rails to create your own chassis that features 8wd and maintenance free "chain-in-tube" construction. $399.00 Custom Order Only

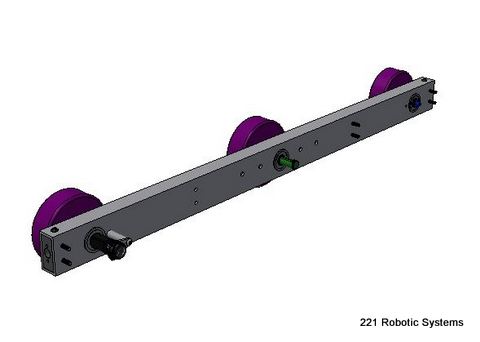

ST Side Rail Kit, 6wd Use this set of side rails to create your own chassis that features 6wd and maintenance free "chain-in-tube" construction. $399.00 Custom Order Only
